LokSound By ESU
| SKU:
397-59120
Special Order
LokPilot 5 Fx Micro DCC Function-Only Decoder -- NEM652 8-Pin Interface
Estimated price
$37.90
Shipping calculated at checkout.
This item is special order only and will ship separately once the item is available.
LokPilot 5 Fx Micro DCC Function-Only Decoder -- NEM652 8-Pin Inter...
Sale price
$0.00
Regular price
$37.90
Unit price
/
Unavailable

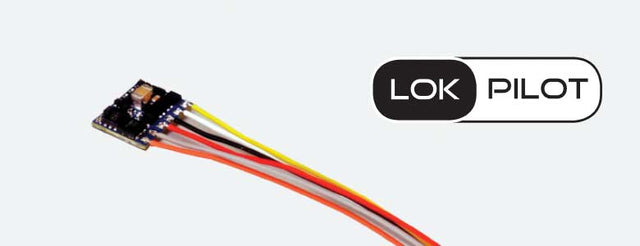

The LokPilot 5 Fx Micro DCC-MM-SX-M4 and its twin LokPilot 5 Fx Micro DCC is an extremely small function-only decoder with a footprint of only 5/16 x 9/32" 8.0 x 7.0mm and a thickness of only 3/32" 2.4mm (on the capacitor: 1/8" 2.9mm). It is used to control lighting effects and other non-motor functions.
The LokPilot 5 Fx DCC speaks the DCC protocol, but can also do it automatically with RailComPlus command stations. The LokPilot 5 Fx micro decoder recognizes the Marklin braking distances as well as the Zimo HLU - Zack Commands or the Lenz ABC system. Also braking with DCC brake modules or with DC voltage is possible. It also stops with a Selectrix brake diode. An ABC automatic shuttle train enables automatic commuting between two train stations. This is also with a function decoder is important in order to be able to synchronize control cars and motor vehicles. The LokPilot 5 Fx decoder can be used on analog DC railways. The decoder switches between the operating modes fully automatically.
The LokPilot 5 Fx micro or LokPilot 5 Fx micro DCC is equipped with six amplified function outputs with 180mA output current each and two logic level outputs for servos or Susi. The brightness of each output can be adjusted separately. A PowerPack can be connected to this decoder for bridging momentary power interruptions.
LokPilot 5 Fx Micro is part of the line of ESU LokSound decoders.
The LokPilot 5 Fx DCC speaks the DCC protocol, but can also do it automatically with RailComPlus command stations. The LokPilot 5 Fx micro decoder recognizes the Marklin braking distances as well as the Zimo HLU - Zack Commands or the Lenz ABC system. Also braking with DCC brake modules or with DC voltage is possible. It also stops with a Selectrix brake diode. An ABC automatic shuttle train enables automatic commuting between two train stations. This is also with a function decoder is important in order to be able to synchronize control cars and motor vehicles. The LokPilot 5 Fx decoder can be used on analog DC railways. The decoder switches between the operating modes fully automatically.
The LokPilot 5 Fx micro or LokPilot 5 Fx micro DCC is equipped with six amplified function outputs with 180mA output current each and two logic level outputs for servos or Susi. The brightness of each output can be adjusted separately. A PowerPack can be connected to this decoder for bridging momentary power interruptions.
LokPilot 5 Fx Micro is part of the line of ESU LokSound decoders.
