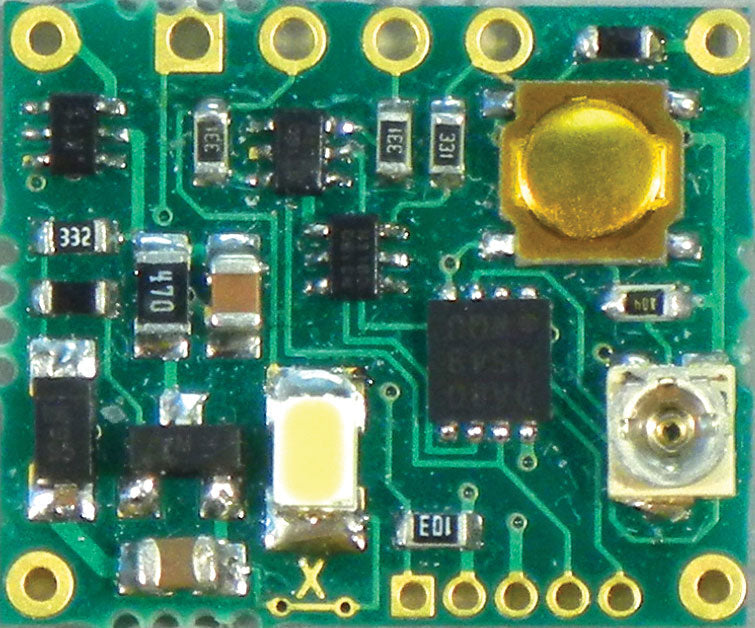

Light-It pkg(3) -- Universal Lighting and Signal Decoder

The NCE Light-It is a multi-purpose programmable DCC lighting decoder. One Light-It contains three programmable lighting outputs with a complete array of lighting effects. Suitable for signal heads, passenger cars, locomotive lighting, cabooses, structure lighting, and many other uses.

Lighting decoder w/built-in white LED Features of this decoder:

• Works on DCC or DC (limited operation on DC)
• Works with loco, accessory or signal addressing
• Built-in warm-white LED (can be disabled)
• Up to 3 LEDs may be controlled separately
• Built-in resistors - just connect LEDs
• Functions as an NMRA signal decoder with 18 aspects
• Each output individually dimmable
• 4 modes - DC, DCC locomotive, DCC accessory or DCC NMRA signal mode!
• 15 lighting EFX
• 18 signal aspects

Total Light-It board output is 30mA; three output channels with 10mA per output rated at 5v.
