Walthers Controls  |  SKU: 942-111

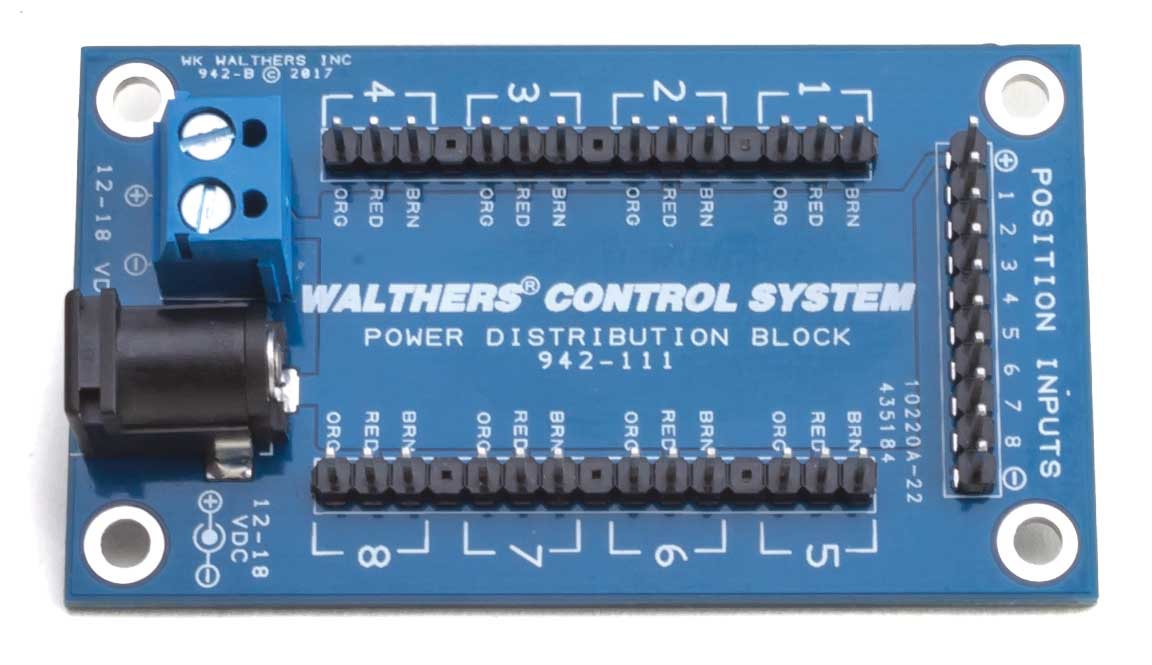

Walthers Layout Control System -- Distribution Block

$13.98 $15.98
Shipping calculated at checkout.

Shipping & Warranty

Shipping:
Orders typically ship within 1–2 business days, with delivery times and rates calculated at checkout; carrier delays may occasionally occur.

Warranty:
Walthers brand products are backed by a one-year warranty against defects in materials and workmanship, excluding normal wear, misuse, or improper handling. For more information, please visit https://www.walthers.com/register-your-warranty/.
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.

See the entire system!


The Walthers Layout Control System Distribution Block features:
  • Simplifies electrical connections from power supply to as many as 8 switch machines
  • Built-in barrel connector for quick connection to 2 Amp 12V Filtered DC Power Supply (949-110, sold separately)
  • Screw terminals to connect second Distribution Block (sold separately) or DCC power input
  • 8 matching position inputs/outputs for easy configuration with CMRI, stationary DCC decoders, microcontrollers, Arduino, Raspberry Pi and others (each sold separately)
  • Includes two power extension cables and four benchwork mounting screws
Instructions
